65-130Kg/H Small Copra Soya Oil Pressing Machine Sunflower Coconut Peanut Cold Press Oil Machine

FOB Reference Price:Get Latest Price
$2,700.00 - $2,900.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LGZX80
Power(W):
5.5KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Usage:
peanut oil press machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Food & Beverage Shops, cold pressing oil machine
Condition:
New
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Place of Origin:
Henan, China
Brand Name:
LONGER
Voltage:
220V/380V can be customized
Dimension(L*W*H):
1500*1300*1550mm
Weight:
880Kg
Certification:
CE ISO
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Product name:
Sunflower Coconut Peanut Cold Press Oil Machine
Application:
sunflower oil press machine
Capacity:
65-130Kg/h
Heater Power:
2.2KW
Vacuum pump Power:
0.75KW
Spiral diameter:
80mm
Supply Ability
Supply Ability:
100 Set/Sets per Month cold press oil machine
Packaging & Delivery
Packaging Details
Standard Wooden Packing as Export for 65-130Kg/H Small Copra Soya Oil Pressing Machine Sunflower Coconut Peanut Cold Press Oil Machine.
Port
Any Port of China.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

Peanut Oil Press Machine Application

1. The soya oil pressing machine can be used to process various oil crops such as peanut, soybean, sesame, cottonseed, sunflower and olive.
2. Oil crops such as peanut, soybean, rapeseed, sesame, sunflower seed, flax seed, camellia seed, cottonseed, pepper seed, walnut kernel, tung seed, ramie, almond, palm, coconut shell, etc.
3. The oil press is suitable for rapeseed, peanut kernel, soybean, oil sunflower, rapeseed, flax, tea seed, sesame, olive, walnut, corn germ, rice bran, tea seed, safflower seed, sea buckthorn seed, neem seed, Plant oils such as rubber seeds, pepper seeds, tomato seeds, watermelon seeds, grape seeds, flaxseed, evening primrose, pepper seeds, castor beans, citrus seeds, cocoa beans, coffee beans, perilla, almonds, peach kernels, rose hips, etc.

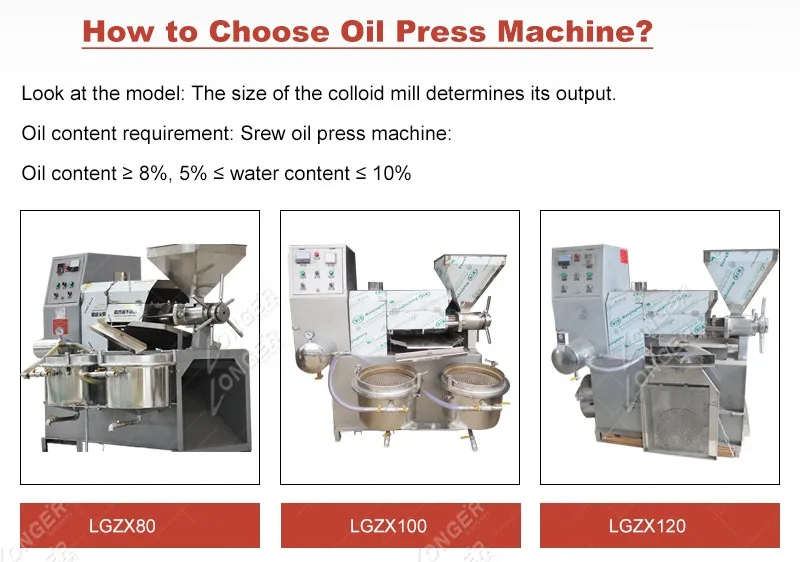

Model
LGZX80
LGZX100
LGZX120
Spiral diameter
φ80mm
φ100mm
φ120mm
Spiral speed
47r/min
38r/min
37r/min
Motor Power
5.5KW
7.5KW
11-15KW
Vacuum pump Power
0.75KW
1.5KW
1.5KW
Heater Power
2.2KW
2.2KW
3.0KW
Capacity
65-130Kg/h
140-200Kg/h
200-300Kg/h
Weight
880Kg
1250Kg
1500Kg
Dimension(mm)
1500*1300*1550
1700*1300*1650
2050*1300*1800
Materials
Oil Content
Oil Extraction Rate
Peanut
45%-50%
39%-44%
Sesame
50%-60%
44%-54%
Almond
50%-65%
40%-45%
Walnut
65%-70%
50%-60%
Soybean
10%-15%
10%-12%
Sunflower Seed
45%-54%
38%-48%
Pine Nuts
50%-55%
45%-60%
Pumpkin Seeds
30%-35%
24%-29%

Working Principle of Coconut Oil Press Machine

After the power is decelerated, it is transmitted to the main shaft. The screw on the main shaft rotates, and the oil between the threads is continuously pushed forward. As the space between the pressing and the pressing screw is gradually reduced, the density of the oil increases, and the pressure is gradually increased.

Related Products

Peanut Roasting Machine

91.8% Response Rate

Peanut Peeling Machine

91.8% Response Rate

Oil Filling Machine

91.8% Response Rate

Detailed Images

Machine Parts

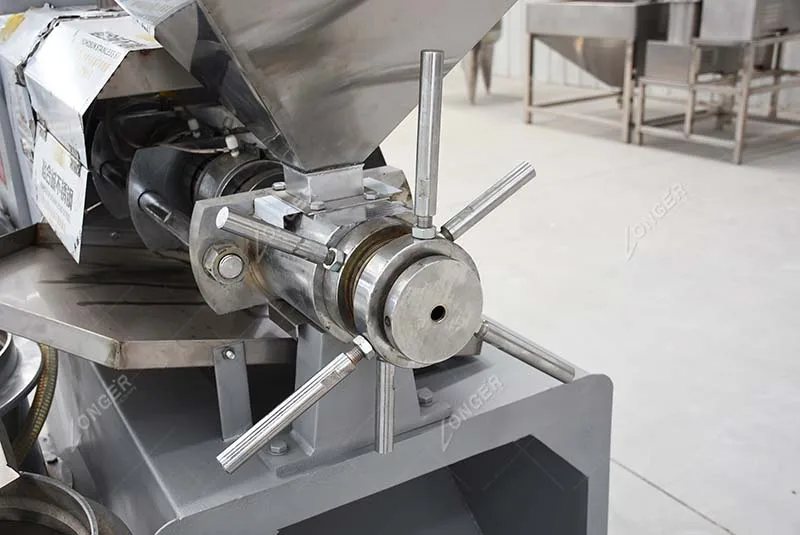

Name: Screw

Brand: LONGER

Original: CHINA


Main Features


Name: Filter and Oil Outlet
Brand: LONGER
Original: CHINA

Machine Parts



Name: Electric Cabinet
Brand: LONGER
Original: CHINA

Main Features


Name: Feeding Inlet
Brand: LONGER
Original: China

Oil Press Performance Characteristics

1. High oil yield: adopting directional pressure, multi-stage propulsion, one-time squeezing, and the oil yield is greatly improved.
2, the production volume is large: strengthen the feeding system, increase the speed of advancement, and effectively improve work efficiency.
3, automatic temperature control: electronic program control, scientific heating, automatic control of the pressing temperature.
4, automatic oil filter: the use of air negative pressure principle, the use of vacuum splitting technology, built-in vacuum splitter, oil, slag effectively separated.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
